Gulf Breeze 12,000 lb. A-Drive Overhead Boathouse Lift



About this Item

  • 12K Capacity
  • Dual A-Drives
  • Dual Motors
  • No Weld Designs

The Gulf Breeze 12,000 lb. A-Drive Overhead Boathouse Lift designed for twin lift boat motor drive application for boats up to 12,000 pounds. No weld design. The mounts drop down each side of the slip and not across the slip like traditional overhead installations. Center console boats, tuna towers, and ski racks have the ability to be lifted. Made from marine grade 6061-T6 aluminum components. The top beams come partially assembled for easy installation. Available with cradles or top beams only. Designed to pinch or clam directly to beams running down the sides of the boat slips. No drilling required. Accomodates 3″ to 8″ wide beams that are up to 12 inches tall.



OPTIONS

PRICE

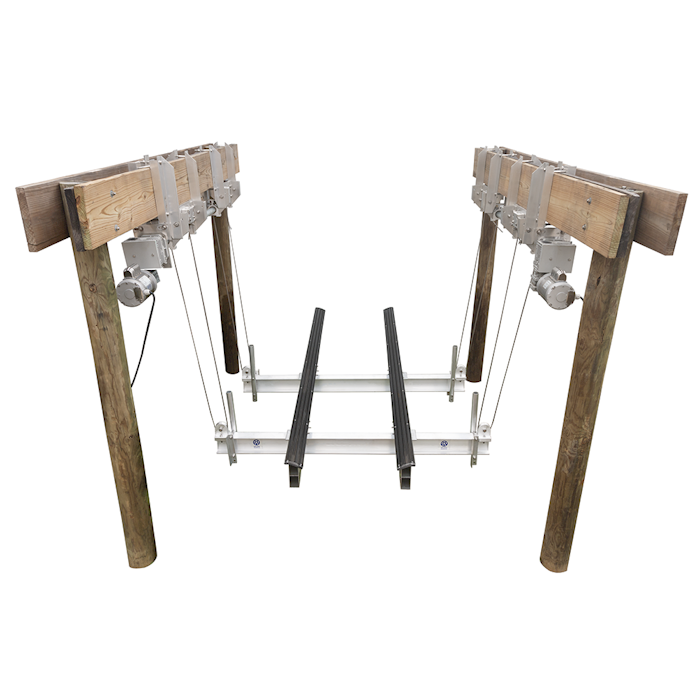

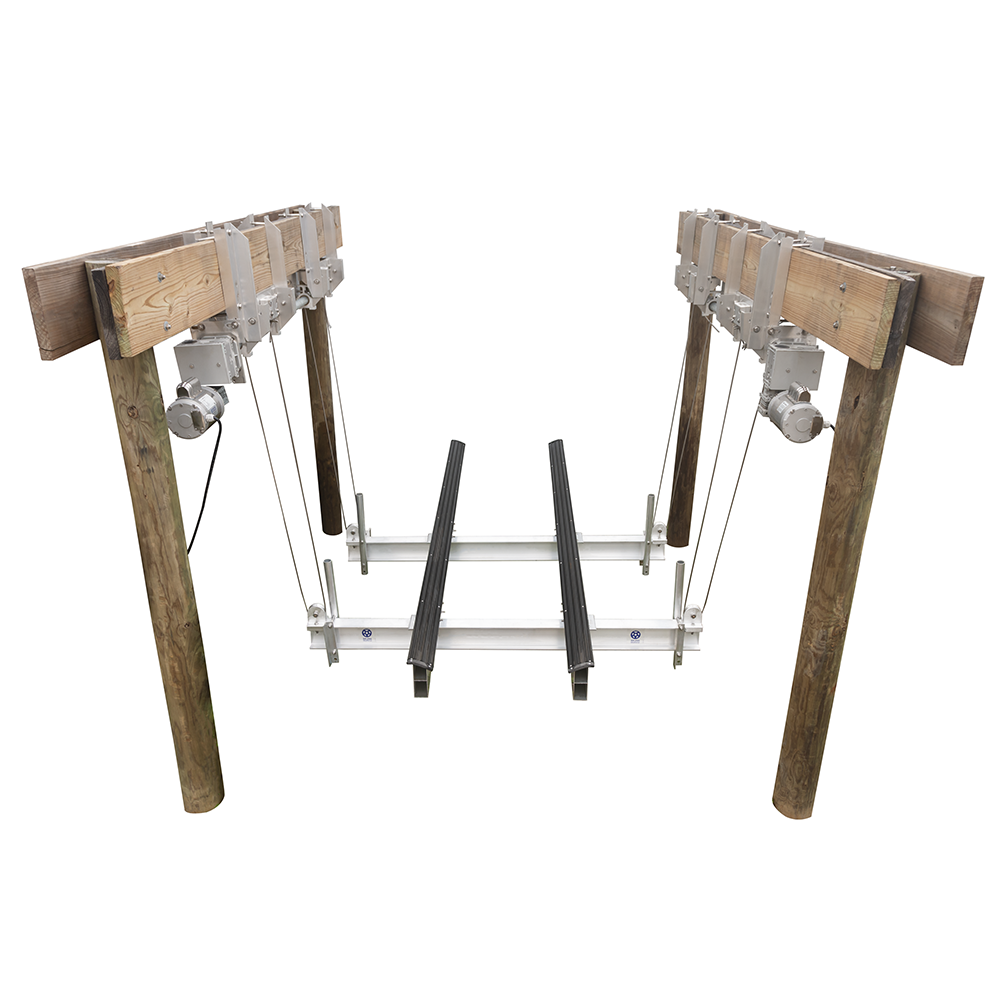

With all Aluminum cradle as seen in the picture. $7,899
Without Cradle $5,195

#93179 – Gulf Breeze Overhead Boat Lift without Aluminum Cradles

(1) #93092 – Elite 1 HP C-Face Stainless Steel Motor – Maintained / 110v / 16 ft. GFCI Switch
(1) #93092-45 – Elite 1 HP C-Face Stainless Steel Motor – Maintained / 110v / 45 ft. GFCI Switch
(4) #93149 – Gulf Breeze Overhead Wood Mount Dual Pipe Support
(2) #93174 – Gulf Breeze Aluminum A-Drive Hoist Hanger
(4) #21206 – 5/16″ Stainless Steel Cable – 33 ft.
(2) #04776 – 40:75 4,000 lb. A-Drive Gear Box
(4) #70118 – 1/4″ Malleable Wire Rope Clip
(2) #36430 – 4K A-Drive Shaft for 1 1/2″ Drive Pipe(4) #70150 – 1 1/2″ ID Single Directional Boat Lift Style Cable Winder
(1) #17517 – 5/16″ x 2 3/4″ Stainless Steel Cable Winder Fastener Pack
(2) #82132FA – 1/2″ x 3 1/2″ Zinc-Plated GR5 Bolt
(2) #82012FA – 1/2″ Nylok Nut

#BH01099GB – Gulf Breeze Overhead Boat Lift with  Aluminum Cradles

(1) #70365 – Aluminum Bunk Mounting Kit for 8″ Beams
(1) #04775 – Boat Lift Cradle Compounding Kit
(2) #70375 – 8″ x 12 1/2′ Aluminum Cradle Beam w/ Sheave Housing
(1) #93092 – Elite 1 HP C-Face Stainless Steel Motor – Maintained / 110v / 16 ft. GFCI Switch
(1) #93092-45 – Elite 1 HP C-Face Stainless Steel Motor – Maintained / 110v / 45 ft. GFCI Switch
(2) #70337 – 14′ L x 10″ H Aluminum Cradle Bunk
(1) #36484 – Gulf Breeze Hoist Mounting Bolt Kit
(1) #BH01099GB-SA – Gulf Breeze Sub Assembly
